Before you start

Check the Port Numbers here. MariaDB first Port would be 3306, then 3307, 3308.
The Ports below have been choosen to avoid potential conflicts, but I didn't have a Problem using the Standard.
If you have MySQL installed, you should be able to run both, though I haven't tried it. If you do, use the Port Numbers as suggested here.
I also assume you will have APACHE and PHP installed as well as (or will install) PHPMYADMIN.
Please see the Credits at the End.
I could just copy almost everything related to MariaDB¹

APACHE & PHP

sudo apt install apache2
sudo apt install php libapache2-mod-php php-mysql
sudo apt install phpmyadmin
sudo systemctl start apache2
sudo systemctl enable apache2

Do this as root user

If root doesn't have a password yet, enter

sudo passwd

Start using root by entering

Install MariaDB

sudo apt update && sudo apt upgrade -y
sudo apt install mariadb-client mariadb-server

Check Status

sudo systemctl status mysql

Stop MariaDB

sudo systemctl stop mysql

Configuring MariaDB for Running Multiple Database Instances

cd /etc/mysql/mariadb.conf.d/
sudo mv -v 50-server.cnf 50-server.cnf.backup
sudo vim 50-server-multi.cnf

Edit 50-server-multi.cnf

[mysqld_multi]
mysqld = /usr/bin/mysqld_safe
mysqladmin = /usr/bin/mysqladmin
log = /var/log/mysql/mysqld_multi.log
user=multi_admin
password=******

Edit 50-server1.cnf

[mysqld1]
user = mysql
pid-file = /run/mysqld/mysqld1.pid
socket = /run/mysqld/mysqld1.sock
basedir = /usr
datadir = /var/lib/mysql1
tmpdir = /tmp
lc-messages-dir = /usr/share/mysql
bind-address = 0.0.0.0
query_cache_size = 100M
log_error = /var/log/mysql/mysqld1_error.log
expire_logs_days = 10
character-set-server = utf8mb4
collation-server = utf8mb4_general_ci
port = 20001
max_connections = 2000

Edit 50-server2.cnf

[mysqld1]
user = mysql
pid-file = /run/mysqld/mysqld2.pid
socket = /run/mysqld/mysqld2.sock
basedir = /usr
datadir = /var/lib/mysql2
tmpdir = /tmp
lc-messages-dir = /usr/share/mysql
bind-address = 0.0.0.0
query_cache_size = 100M
log_error = /var/log/mysql/mysqld2_error.log
expire_logs_days = 10
character-set-server = utf8mb4
collation-server = utf8mb4_general_ci
port = 20002
max_connections = 2000

Edit 50-server3.cnf

[mysqld1]
user = mysql
pid-file = /run/mysqld/mysqld3.pid
socket = /run/mysqld/mysqld3.sock
basedir = /usr
datadir = /var/lib/mysql3
tmpdir = /tmp
lc-messages-dir = /usr/share/mysql
bind-address = 0.0.0.0
query_cache_size = 100M
log_error = /var/log/mysql/mysqld3_error.log
expire_logs_days = 10
character-set-server = utf8mb4
collation-server = utf8mb4_general_ci
port = 20003
max_connections = 2000

Configuration

sudo touch /var/log/mysql/mysqld_multi.log
sudo chown -v mysql:adm /var/log/mysql/mysqld_multi.log
sudo chmod -v u=rw,g=rw,o= /var/log/mysql/mysqld_multi.log
sudo touch /var/log/mysql/mysqld{1..3}_error.log
sudo chown -v mysql:adm /var/log/mysql/mysqld{1..3}_error.log
sudo chmod -v u=rw,g=rw,o= /var/log/mysql/mysqld{1..3}_error.log
sudo mkdir -v /var/lib/mysql{1..3}
sudo chown -v mysql:mysql /var/lib/mysql{1..3}
sudo chmod -v u=rwx,g=rx,o=rx /var/lib/mysql{1..3}

Install Databases

sudo mysql_install_db --user=mysql --datadir=/var/lib/mysql1
sudo mysql_install_db --user=mysql --datadir=/var/lib/mysql2
sudo mysql_install_db --user=mysql --datadir=/var/lib/mysql3

Running multiple Instances

sudo mysqld_multi report

Start and Report

sudo mysqld_multi start
sudo mysqld_multi report

Do the next TWO Steps for each Instance

Connect to an Instance

sudo mysql -S /run/mysqld/mysqld1.sock -u root

Add User and Rights

GRANT SHUTDOWN ON *.* TO 'multi_admin'@'localhost' IDENTIFIED BY 'secret';
GRANT ALL ON *.* to 'root'@'%' IDENTIFIED BY '!QAZ2wsx' WITH GRANT OPTION;
FLUSH PRIVILEGES;
EXIT;

Stop the Instances

sudo mysqld_multi stop

Allow run at Boot

sudo crontab -e

Add to Crontab

Choose NANO (Option 1) to Edit

@reboot /usr/bin/mysqld_multi start

Bug alert!

If you experience Problems that /run/mysqld/mysql{n}.socket can not be found or created
Bug Report
Create a newfile /etc/tmpfiles.d/mysql.conf:

# systemd tmpfile settings for mysql
# See tmpfiles.d(5) for details

d /var/run/mysqld 0755 mysql mysql -

After reboot, mysql should start normally.

MariaDBD-multi as Service (instead of Crontab)

Edit /etc/systemd/system/mariadbd.service

[Unit]
Description=MariaDBD Multi Server for instance
After=syslog.target
After=network.target

[Service]
User=mysql
Group=mysql
Type=forking
ExecStart=/usr/bin/mariadbd-multi start
ExecStop=/usr/bin/mariadbd-multi stop
Restart=always
PrivateTmp=true

[Install]
WantedBy=multi-user.target

Run

sudo systemctl enable mariadbd.service

Caution

This is Important!

The Base Consiguration is left UNTOUCHED, you can still run mariadbd on the Basic configuration, but not concurrently unless you change Ports.
Likewise the SOCKET in Configuration my.cnf points to the Base Configuration.
That could produce confusing error messages, if you switch between Standard and Multi
or some Program uses the wrong Connection and can't find Tables.

PHPMYADMIN Config File /etc/phpmyadmin/config.inc.php²

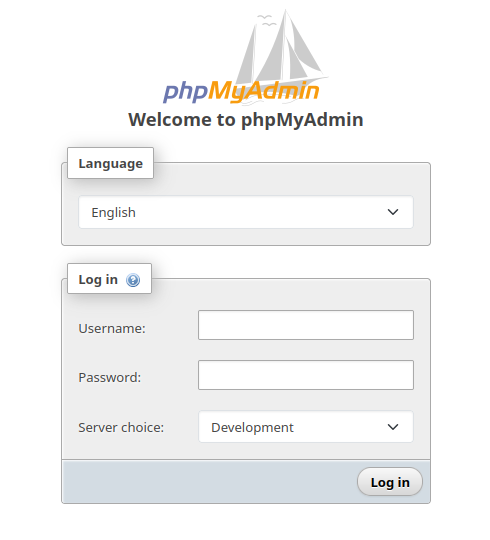

To have your Instaces in a List at PHPMYADMIN Logon add to the end:
Validate the PORT NUMBERS!

$i=1;
$cfg['Servers'][$i]['verbose'] = 'Development';
$cfg['Servers'][$i]['auth_type'] = 'cookie';
$cfg['Servers'][$i]['host'] = '127.0.0.1';
$cfg['Servers'][$i]['port'] = 20001;
$cfg['Servers'][$i]['connect_type'] = 'tcp';
$cfg['Servers'][$i]['compress'] = false;
$cfg['Servers'][$i]['AllowNoPassword'] = false;
$i=2;
$cfg['Servers'][$i]['verbose'] = 'Quality';
$cfg['Servers'][$i]['auth_type'] = 'cookie';
$cfg['Servers'][$i]['host'] = '127.0.0.1';
$cfg['Servers'][$i]['port'] = 20002;
$cfg['Servers'][$i]['connect_type'] = 'tcp';
$cfg['Servers'][$i]['compress'] = false;
$cfg['Servers'][$i]['AllowNoPassword'] = false;
$i=3;
$cfg['Servers'][$i]['verbose'] = 'Production';
$cfg['Servers'][$i]['auth_type'] = 'cookie';
$cfg['Servers'][$i]['host'] = '127.0.0.1';
$cfg['Servers'][$i]['port'] = 20003;
$cfg['Servers'][$i]['connect_type'] = 'tcp';
$cfg['Servers'][$i]['compress'] = false;
$cfg['Servers'][$i]['AllowNoPassword'] = false;

PHP Configuration File /etc/php/<version>/apache2/php.ini

Double Check that you have the mysqli extention in the File or add it.

extension=mysqli.so

Reboot

reboot

Validate Connection

Enter the Command below. MariaDB will acknowledge the Connection, if successful.

mysql -u <db_user> -h <db_host> -p -P <3306>

Congratulations

You just configured a bare bone Cloud Server
If your Computer were on a Company Network with IP Addresses to spare, you could change the Binding in the Connfiguration to reflect those IP Addresses that you assigned to your Network Card, do the same with the Bindings of the Sub-Directories of the Apache Sever and you can sell Cloud Services.
Ok, there is Caveat down the Road, like fail over Procedures, Database Replication, etc. But that's for another day and keep in mind,
I don't do that stuff for a living.

Driver Issues? LIBSSL Missing?

Enter ldd <Library_Name> to find what is missing. Adjust Code below to correct version.

curl -O http://security.ubuntu.com/ubuntu/pool/main/o/openssl/libssl1.1_1.1.1f-1ubuntu2.22_amd64.deb
sudo dpkg -i libssl1.1_1.1.1f-1ubuntu2.22_amd64.deb

Credits:
https://hackmd.io/@necdisd/HkXYj_IM2#Running-Multiple-MariaDB

https://dba.stackexchange.com/questions/125455/connecting-phpmyadmin-to-two-different-mysql-instances-on-the-same-host
